XRT Intelligent Sorting Machine

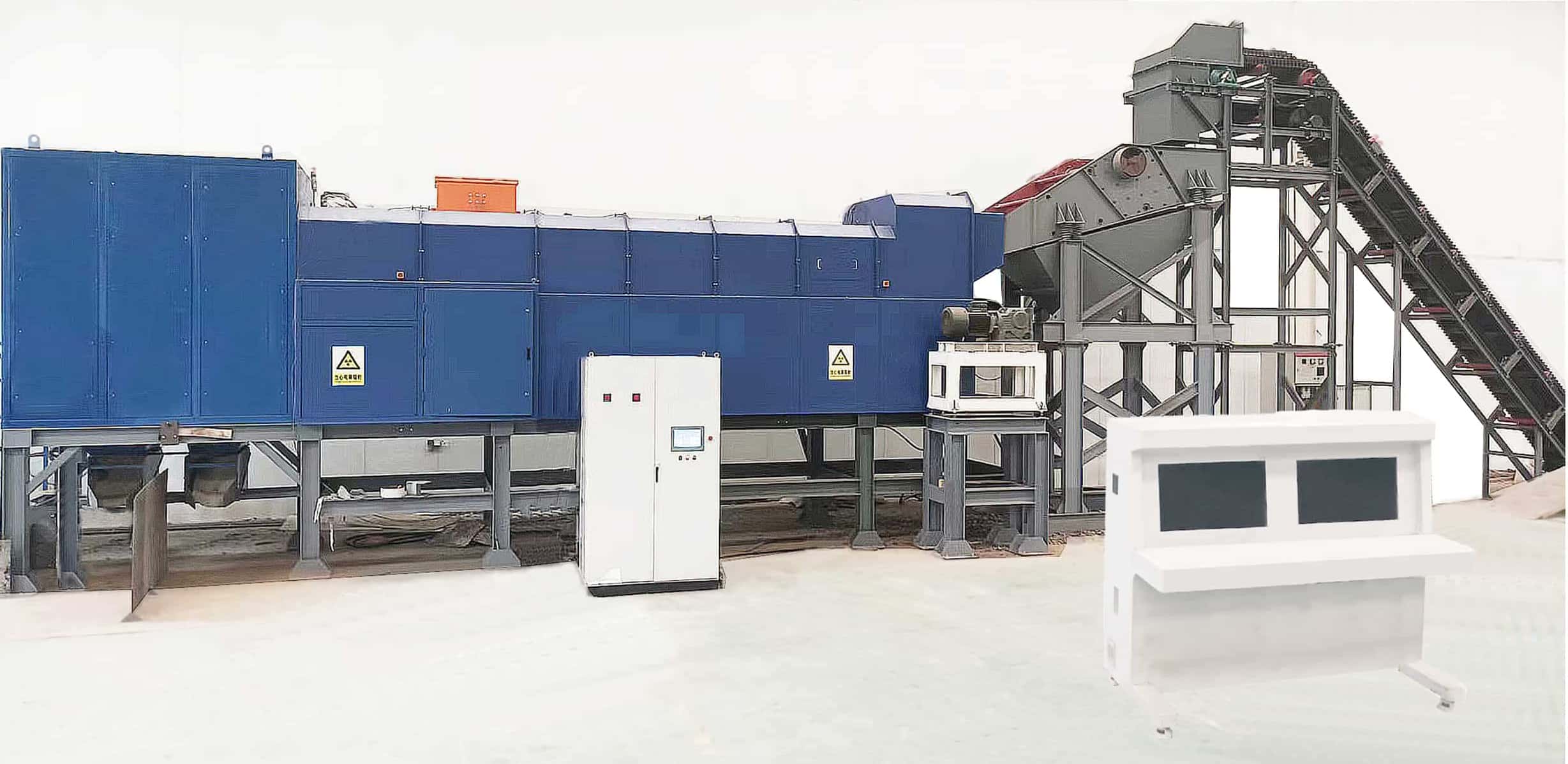

X-ray XRT intelligent mineral sorting machine According to different density between concentrate and tailings
X-ray XRT intelligent mineral sorting machine According to different density between concentrate and tailings

X-ray XRT intelligent mineral sorting machine According to different density between concentrate and tailings

X-ray intelligent mineral sorting machine uses X-ray to transmit scanning of the selected ore, obtains the atomic number data of the minerals, processes the data by means of convolutional neural network and other means, establishes an identification model, identifies the ore and miscellaneous stones, and then drives the actuator to sort the ore. It is also possible to add visible or infrared cameras for composite identification according to the different characteristics of the ore to further improve the sorting accuracy.





Mingde MTX series X-ray intelligent mineral sorter can handle ore size from 300mm to 10mm. For example , According to the mineral density of 1.4g/cm³, the processing capacity of one unit can reach up to 380t/hour.

The specific selection table is as follows



+50~-300mm大颗粒(按照矿物密度1.4g/ cm³计算)

+50~-300mm large particle (calculated with density 1.4g/ cm³)

技术参数

Technical Parameters

MTX12-300

MTX14-300

MTX16-300

MTX18-300

MTX20-300

MTX24-300

MTX28-300

MTX32-300

MTX36-300

MTX40-300

履带布料器宽度(mm

Width of track drapery(mm)

1200

1400

1600

1800

2000

2400

2800

3200

3600

4000

处理能力T/H

DealCapacity

(T/H)

110

130

150

170

190

230

260

300

340

380

理论配置厂型(Mt/a

Theoretical configurationMt/a

1.8-2.3

2.3-2.7

2.7-3.1

3.1-3.6

3.6-4.0

4.0-4.8

4.8-5.5

5.5-6.5

6.5-7.0

7.0-8.0

实际处理能力要根据矿物密度进行具体计算

The actual capacity should be calculated accoring to mineral density.









+25~-100mm中颗粒(按照矿物密度1.4g/ cm³计算)

+25~-100mm ,middle particle (calculated with density 1.4g/ cm³)

技术参数

Technical Parameters

MTX12-100

MTX14-100

MTX16-100

MTX18-100

MTX20-100

MTX24-100

MTX28-100

MTX32-100

MTX36-100

MTX40-100

履带布料器宽度(mm

Width of track drapery(mm)

1200

1400

1600

1800

2000

2400

2800

3200

3600

4000

处理能力T/H

DealCapacity

(T/H)

66

78

90

102

114

126

155

180

205

230

理论配置厂型(Mt/a

Theoretical configurationMt/a

0.9-1.0

1.1-1.3

1.3-1.5

1.5-1.7

1.7-1.9

1.9-2.4

2.4-2.8

2.8-3.2

3.2-3.6

3.6-4.0

实际处理能力要根据矿物密度进行具体计算

The actual capacity should be calculated accoring to mineral density.











+10~-60mm小颗粒(按照矿物密度2.7g/ cm³计算)

+10~-60mm small particle (calculated with density 2.7g/ cm³)

技术参数

Technical Parameters

MTX12-30

MTX14-30

MTX16-30

MTX18-30

MTX20-30

MTX24-30

MTX28-30

MTX32-30

MTX36-30

MTX40-30

履带布料器宽度(mm

Width of track drapery(mm)

1200

1400

1600

1800

2000

2400

2800

3200

3600

4000

处理能力T/H

DealCapacity

(T/H)

35

42

49

56

63

77

91

105

119

133

实际处理能力要根据矿物密度进行具体计算

The actual capacity should be calculated accoring to mineral density.













Technical advantages.

1、      The high-precision and dural-engergy acquisition we developed independently can not only identify minerals with large density difference and high content,but also identify minerals with small density difference and low content,which is suitable for many minerals sorting.

2Adopt deep learning and other artificial intelligence methods to establish a unique mathematical model for each mining to ensure the accuracy of recognition, and then achieve the efficiency and accuracy of sorting .

3The application of internet of Things technology  can monitor equipment running status in real time,the fault prompt and alarm system can be self-taught and updated ,which constantly improve the sorting effect.

4Professional software and world-class components to make the machine stable and high-yield operation.

5Many years of experience in research and development and producting experience of mining sorting equipment, we can customized models and supporting equipment according to different types of mines and working condition.

Applied to soring of metal ores and non-coal mines

1,In New mine construction and old mine technical transformation ,it can select the ores to reach economic mining value.

2, Disposal of the ores greatly reduces the amount of wasting stones of “curshing-grinding-selecting” process,reduces the overall cost of the mining, and reduces the production of tailings.

3, Sorting and enriching useful minerals in low-grade ores to make use of resources which hasnot mining value and expand the range of minerals available.

4,Re-sorting the waste materials which generated in the metallurgical production process to extract useful minerals.

 Application to the sorting of coal and gangue

1,The wide processing range of particle size can effectively sorting +10mm ~ -300mm granules.

2, The sorting accuracy is high,the discharge gangue rate is more than > 96% , and the carryover rate in 1-3%.

3Low energy consumption per unit, the average power consumption is less than 1kw h/t.

4Fully Automatic intelligent production, unattended operation. Unit equipment can replace 5-10 manual candidates, reduce the work intensity of workers and improve productivity.



The following ores we can sort

1Nonferrous metal ore: Lead zinc ,aluminum, zinc, copper, molybdenum, nickel, gold, silver, tin, etc.

2Ferrous metal ores: manganese, iron, chromium, vanadium, titanium, tungsten, etc.

3, non-metallic ores: fluorite, brucite , magnesite, coal and coal gangue, etc.

4, other: phosphate ore, perlite, solid waste waste, smelting slag, etc.

 Application to the sorting of coal and gangue

1,The wide processing range of particle size can effectively sorting +10mm ~ -300mm granules.

2, The sorting accuracy is high,the discharge gangue rate is more than > 96% , and the carryover rate in 1-3%.

3Low energy consumption per unit, the average power consumption is less than 1kw h/t.

4Fully Automatic intelligent production, unattended operation. Unit equipment can replace 5-10 manual candidates, reduce the work intensity of workers and improve productivity.



The following ores we can sort

1Nonferrous metal ore: Lead zinc ,aluminum, zinc, copper, molybdenum, nickel, gold, silver, tin, etc.

2Ferrous metal ores: manganese, iron, chromium, vanadium, titanium, tungsten, etc.

3, non-metallic ores: fluorite, brucite , magnesite, coal and coal gangue, etc.

4, other: phosphate ore, perlite, solid waste waste, smelting slag, etc.



FAQ



Q:Are you a factory or trading company?
A:We are a factory.located in Hefei city,280 miles west away from Shanghai port

Q:Where is your factory located?
A: No.39 JinrongRd, Shuangfeng Economic development zone,Hefei,China

Q:Can we use our own logo or design for sticker?
A:Yes,you can .You can contact with the salesmen, please send an email to her/him and tell more
details about the logo or sticker.

Q:How can I get the samples?
A:no sample,we can do the experiment on the ore offered by you, offer the test report and techincal advice



Q:What’s your warranty?
A:one year

.

Q. How about the packing?
Packing will do as customer 's requirement
